Product features:

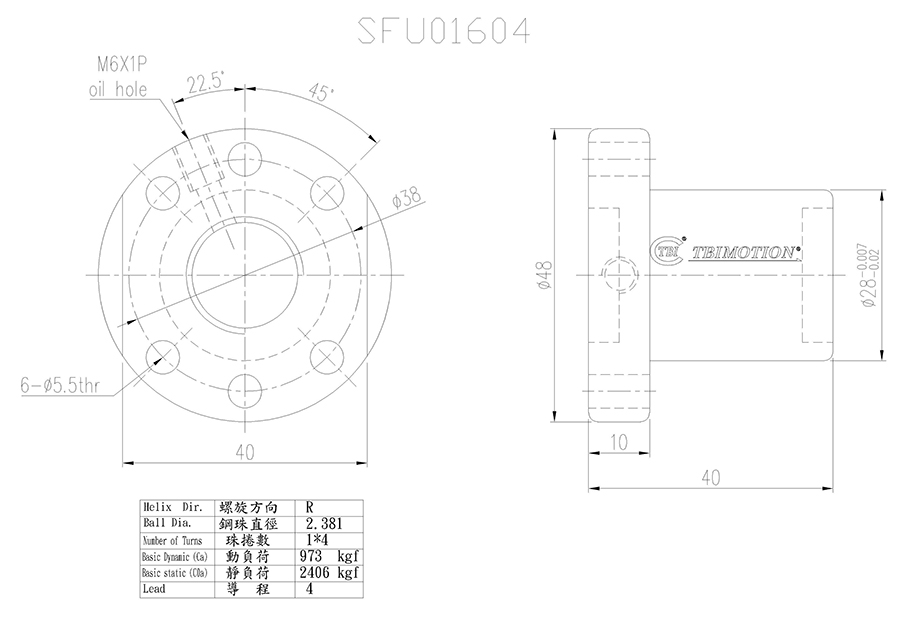

Besides the advantages of smoothness, high rigidity, durability and high dust-proof, SFNU & SFU series nuts are smaller in size and more suitable for operation in places with narrow running space.
Application range:
It is suitable for machines with small internal space, general tools, general industrial machinery, automatic machinery and other equipment.
PRODUCT
Product introduction
Ball Screw - Recirculation Series Features
1. Internal circulation design to save space.
2. Drive torque is small, only 1/3 of the sliding screw.
3. Guarantee of high accuracy.
4. Micro-feed can be controlled at 0.1 μ M or less.
5. No gap, high rigidity.
Ball screw
Characteristics of linear slide railBall screw is a mechanical element which converts the rotating movement of internal steel beads into a straight movement. Ball screw has longer life, environmental protection and more stable operation than traditional ACME screw. Characteristics of ball screw:
1. The highly reliable TBI MOTION ball screw is based on the accumulated manufacturing technology over the years, and is managed by a strict quality assurance system from material, heat treatment, manufacturing, inspection to shipment. Therefore, it has high reliability.
2. Sliding and moving ball screw has higher efficiency than sliding screw and only requires less than 30% torque. Linear motion can be easily converted into rotary motion. Ball screw can maintain smooth movement even when pre-pressed.
3. No backlash and high rigidity ball screw. It can also be easily rotated if the Go thic arch groove shape and axial direction clearance are adjusted to a minimum. A preload adjustment is made between one or two nuts to eliminate the axial clearance and to provide the appropriate rigidity for use.
4. The circulation mode TBI MOTION has multiple circulation patents, including internal circulation, external circulation and end cover circulation, to satisfy customers'needs.
5. Excellent durability TBI MOTION ball screw is based on years of accumulated production technology load of ball screw. Precise materials are available for durable products through high heat treatment and processing technology.
